Detect CAD holes and find respective CAD bolt available at that location in Hypermesh 2022.2

ATLURI BHARATH KUMAR
ATLURI BHARATH KUMAR Altair Community Member
edited March 28 in Community Q&A

Hi,

I want to know if there is any possibility to find CAD (surfaces/solids) holes. find the respective bolts and their specifications at the location.



Thanks

Tagged:

Answers

  • Michael Herve_21439
    Michael Herve_21439
    Altair Employee
    edited March 20

    Hello @ATLURI BHARATH KUMAR ,



    if you are using the new user interface (which I would recommend), you can use Features to auto-detect holes:

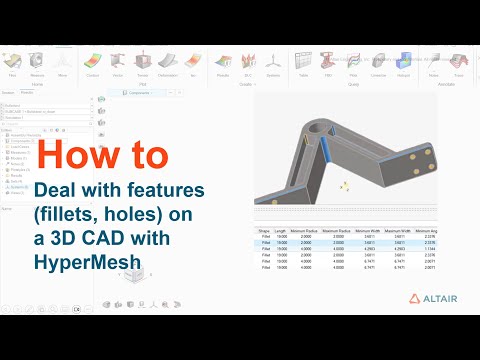

    https://youtu.be/eoUtpJlOP3U?si=GxP7oW3p5tYvo9Nf (from 18:36)



    Hope this helps,

    Michael

  • ATLURI BHARATH KUMAR
    ATLURI BHARATH KUMAR Altair Community Member
    edited March 21
    Michael Herve_21439 said:

    Hello @ATLURI BHARATH KUMAR ,



    if you are using the new user interface (which I would recommend), you can use Features to auto-detect holes:

    https://youtu.be/eoUtpJlOP3U?si=GxP7oW3p5tYvo9Nf (from 18:36)



    Hope this helps,

    Michael

    Is there any possibility to find 3D CAD holes and resepective bolts through scripting.

    Thanks in advance

  • Michael Herve_21439
    Michael Herve_21439
    Altair Employee
    edited March 21
    ATLURI BHARATH KUMAR said:

    Is there any possibility to find 3D CAD holes and resepective bolts through scripting.

    Thanks in advance

    hello @ATLURI BHARATH KUMAR ,



    can you please provide more details about the automation you would like to set up. This would allow us to propose you the best strategy.



    Also, is there any chance you can upgrade soon to 2022.3 or above? We have from 2022.3 a feature called auto fastener which detects and create automatically a fastener at 3D holes, which can then be automated with command *CE_AutoCreateMatingConnectors



    Hope this helps,

    Michael

  • ATLURI BHARATH KUMAR
    ATLURI BHARATH KUMAR Altair Community Member
    edited March 21
    Michael Herve_21439 said:

    hello @ATLURI BHARATH KUMAR ,



    can you please provide more details about the automation you would like to set up. This would allow us to propose you the best strategy.



    Also, is there any chance you can upgrade soon to 2022.3 or above? We have from 2022.3 a feature called auto fastener which detects and create automatically a fastener at 3D holes, which can then be automated with command *CE_AutoCreateMatingConnectors



    Hope this helps,

    Michael

    I want to detect the bolts and their specifications at the respective holes in CAD.

    Then, I want to import FE bolt with the found specifications from local drive or if possible I want to create hex bolts according to the found specs for the mate holes. The FE bolt length should be according to the CAD bolts.

    Can you suggest any strategy for Hypermesh 2022.2

    Thanks in advance.

  • ATLURI BHARATH KUMAR
    ATLURI BHARATH KUMAR Altair Community Member
    edited March 26
    Michael Herve_21439 said:

    hello @ATLURI BHARATH KUMAR ,



    can you please provide more details about the automation you would like to set up. This would allow us to propose you the best strategy.



    Also, is there any chance you can upgrade soon to 2022.3 or above? We have from 2022.3 a feature called auto fastener which detects and create automatically a fastener at 3D holes, which can then be automated with command *CE_AutoCreateMatingConnectors



    Hope this helps,

    Michael

    Hi @Michael Herve,

    is there anyway to find the CAD bolt head, shank and nut specifications separately through script?

  • Michael Herve_21439
    Michael Herve_21439
    Altair Employee
    edited March 26
    ATLURI BHARATH KUMAR said:

    Hi @Michael Herve,

    is there anyway to find the CAD bolt head, shank and nut specifications separately through script?

    Hello @ATLURI BHARATH KUMAR ,



    what would be the input you would rely on to determine factener specifications? Would that be the CAD shape,metadata, naming convention or other mechanism?



    Best Regards,

    Michael

  • ATLURI BHARATH KUMAR
    ATLURI BHARATH KUMAR Altair Community Member
    edited March 26
    Michael Herve_21439 said:

    Hello @ATLURI BHARATH KUMAR ,



    what would be the input you would rely on to determine factener specifications? Would that be the CAD shape,metadata, naming convention or other mechanism?



    Best Regards,

    Michael

    Hi

    @Michael Herve

    I am taking Bolt CAD Shape as a reference to import and fit the premodelled FE bolt. The bolt,washer and nut of CAD are in separate collectors

  • ATLURI BHARATH KUMAR
    ATLURI BHARATH KUMAR Altair Community Member
    edited March 28
    Michael Herve_21439 said:

    Hello @ATLURI BHARATH KUMAR ,



    what would be the input you would rely on to determine factener specifications? Would that be the CAD shape,metadata, naming convention or other mechanism?



    Best Regards,

    Michael

    Hello Michael Herve,

    Is it possible to get the data as mentioned.
