Software - HYPERVIEW

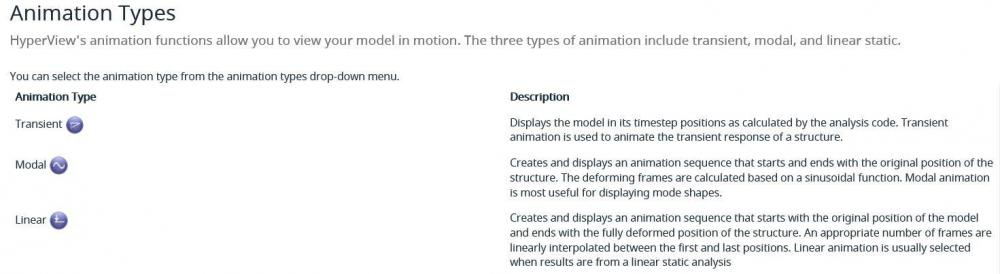

What is the Difference between Transient, Modal & Linear Animation Mode? (refer attachment)
<?xml version="1.0" encoding="UTF-8"?>
Linear is for linear static /Modal is Normal modes analysis/Transient is for Dynamic,crash & nonlinear transient analysis.
Linear is for linear static /Modal is Normal modes analysis/Transient is for Dynamic,crash & nonlinear transient analysis. <?xml version="1.0" encoding="UTF-8"?>
Thankyou for reply Sir. But i still don't understand the meaning of timestep position. Can you tell me for which analysis what animation type should use. Like Modal Analysis, FRF Analysis, Resonance Stress Analysis, Static Load Analysis.
