when i analysis the composite plate ,first come to tensor result the element strain has result ,second the composite strain ply1 has no result
thanks very much for direct my wrong operation
Hi,

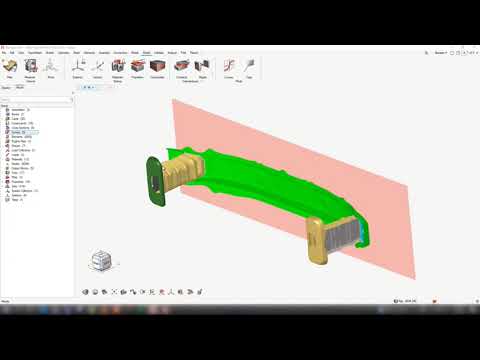

As you already requested the composite strain as tensor, you will need to load the result file under HM Post and request the tensor plot. I would recommend to take a look in this video that show how to load the result file and plot some values using HM Post: https://www.youtube.com/watch?v=q6ClzaO74GM.
