pentrate tube into flange pin during incremental radioss

impauto
impauto Altair Community Member
edited October 2020 in Community Q&A

Dear sir

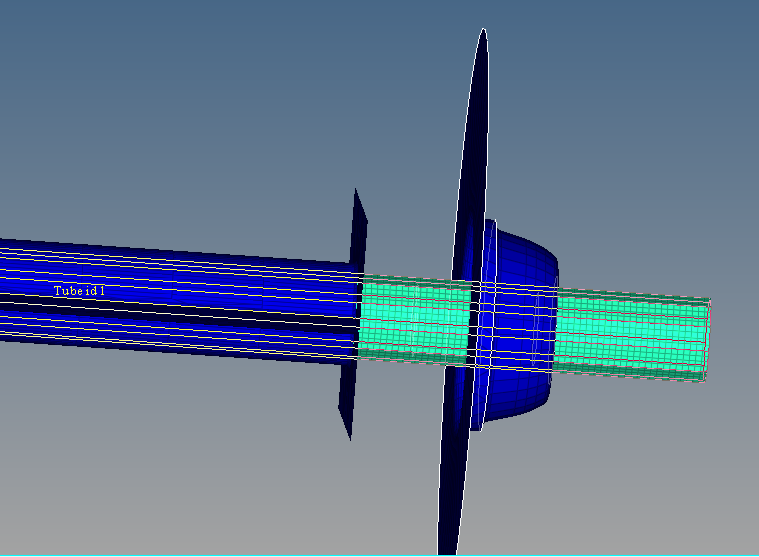

image.png.2c837c56372e552ab118c4bff6bffe93.pngI need help regaring incremental radioss in manufacturing solution . tube alway penetrate flange pin during flaring process.Pls help me reagrding same.I alreay number of iteration didn't get successful result.

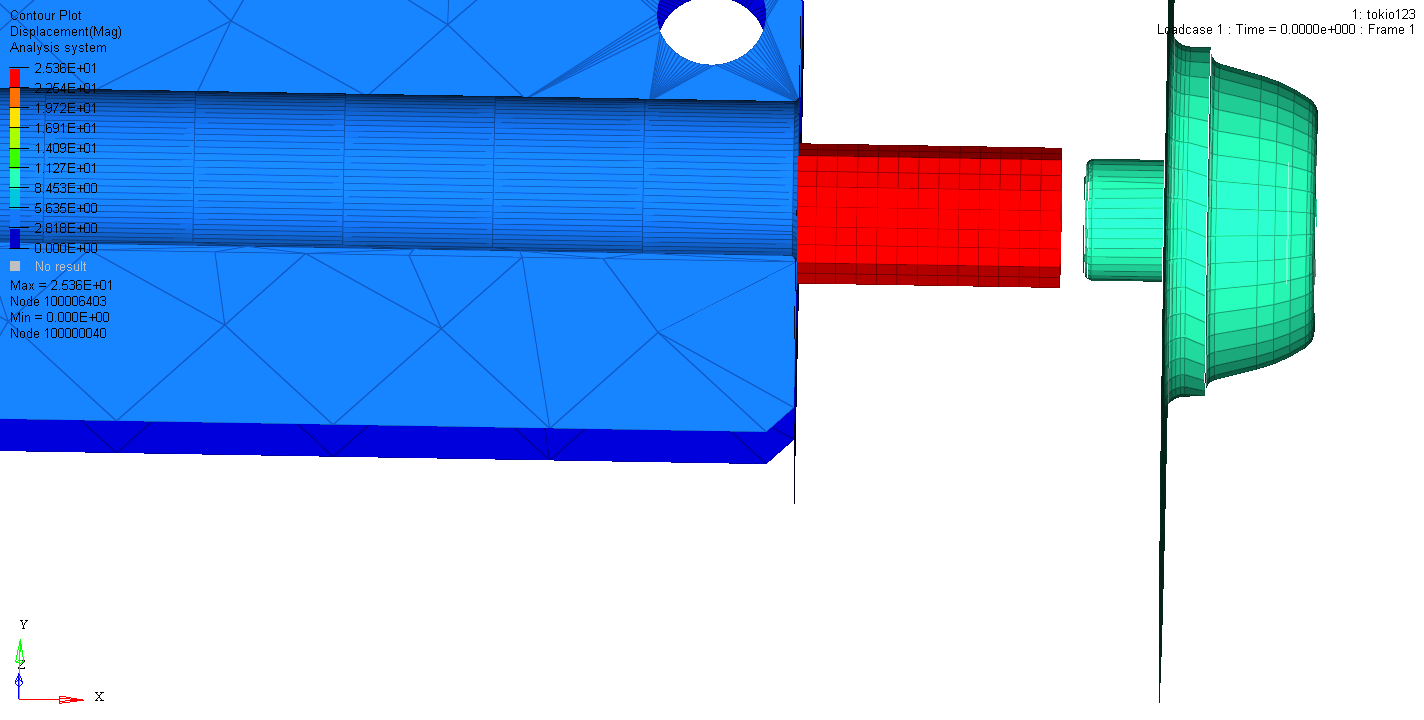

<?xml version="1.0" encoding="UTF-8"?>new.gif

Tagged:

Answers

  • Altair Forum User
    Altair Forum User
    Altair Employee
    edited April 2018

    Hi,



    any chance of sharing a sample HF deck and a bit more details on the intended action of the tools.

  • XNikhil
    XNikhil New Altair Community Member
    edited October 2019

    hi all ,

     i am working on end forming process but result and desired shape not getting as per expected. i also done under number of iteration but result ( pressure not come as desired)

    also need punch pressure on hypergraph .Pls help me regarding this. its urgent. I am also attaching deck.





    Regards

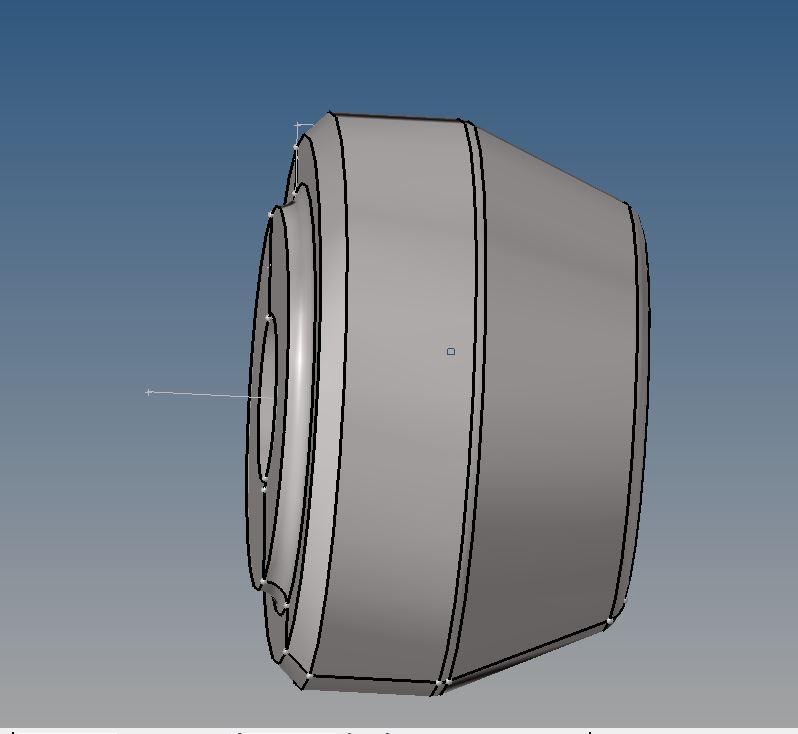

    <?xml version="1.0" encoding="UTF-8"?>Capture.JPG

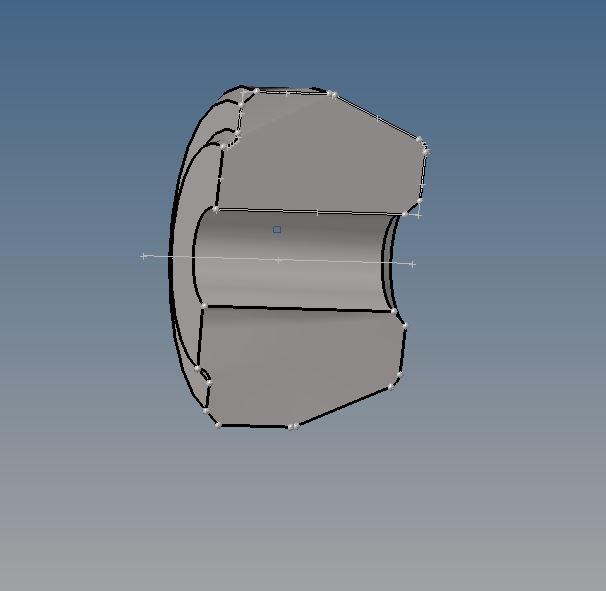

    <?xml version="1.0" encoding="UTF-8"?>2.JPG
