The mesh is stopped at 70% and not converging. (For all night).
Mesh size tested: 8mm, and 10 mm
Ram Memory is 128 GB
Unable to find an attachment - read this blog
Hi Uri,

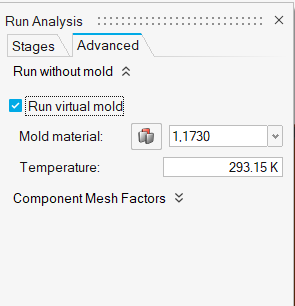

I would recommend using Virtual Mold Analysis in such cases.
Regards,
Sourav
Please see details in my last answer to:
Filling Error (see previous post Solidification Error same file)
(With virtual mold mesh failed )
