When trying to calculate (solidification) with sleeves I get an error message:

Error when preparing data for analysis (Domain error: Argument not in valid range)

The calculation is O.K. without sleeves.

Please advise.

<?xml version="1.0" encoding="UTF-8"?>

Find more posts tagged with

English

Inspire Cast

Accepted answers

All comments

Pau_20794

Dear Uri,

There is something wrong with the configuration of the sleeves but it's hard to know what's happening just with this error message.

If you send us the project folder we can debug and try to find the error.

https://ftam1.altair.com/filedrop/~LMxXrO

Best Regards

uri

Files has been sent, thanks

Pau_20794

Hello Uri,

The problem is there is no ingate on this model.

Please, start again from the scratch and mesh again using an ingate. This should solve the problem.

Best Regards

uri

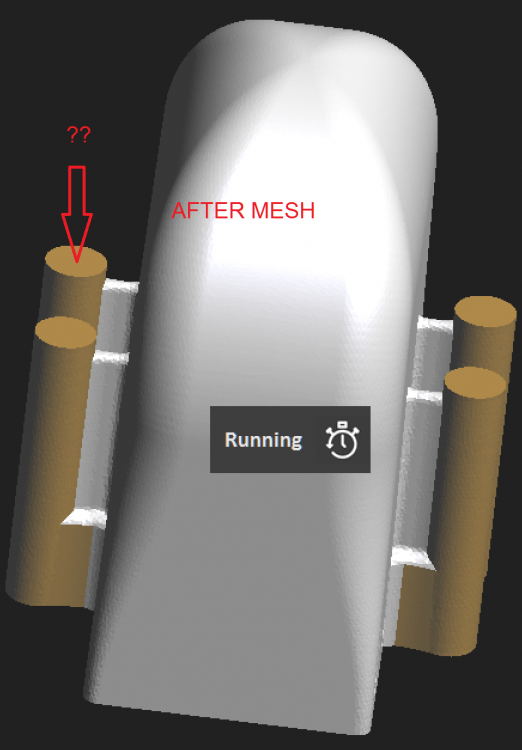

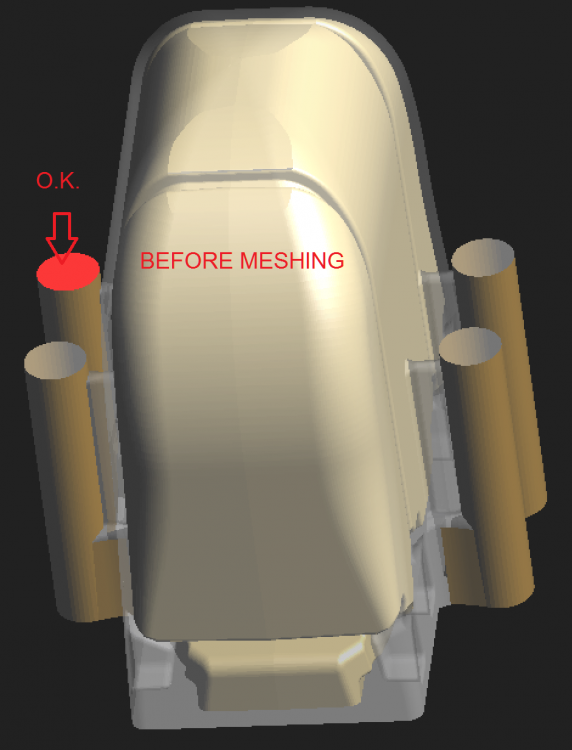

Ingate is placed and can be seen before meshing

It disappears after meshing !!

<?xml version="1.0" encoding="UTF-8"?>

Pau_20794

There is a problem when the ingate surface is in contact with one of the surfaces of the additional components (sleeve, core,..)

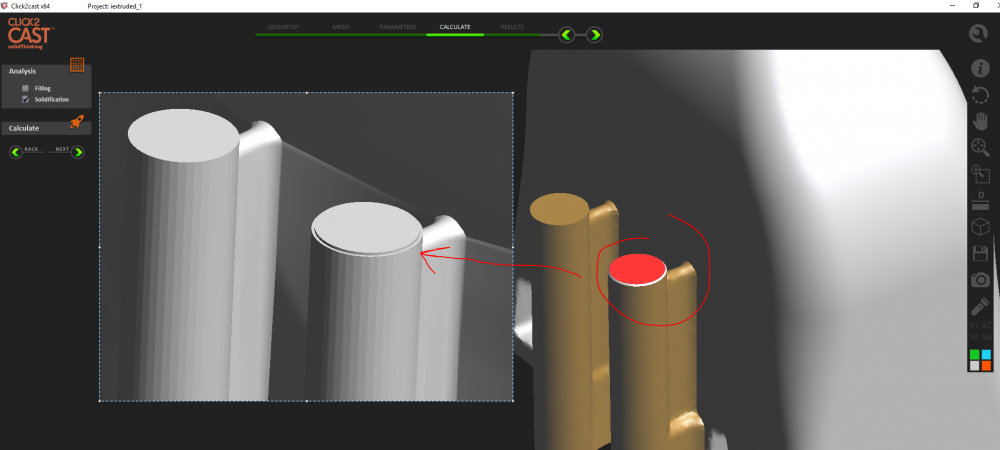

Meanwhile, in case you have this situation, please extrude just an small offset of the face in order to separate the ingate surface from the sleeve surfaces. (see below image)

We'll work to solve this issue.

Please, find below a link to download the file with the ingate meshed.

https://ftam1.altair.com/message/m40gPhijtxxbaxGThmKcbB

Best Regards

<?xml version="1.0" encoding="UTF-8"?>

uri

Thanks
