After 3 D meshing one solid, when you tried to 3D mesh the other one, the nodes of elements of one solid weren’t coinciding with the nodes of elements of the other right?

Kshitij Singh_21085
Kshitij Singh_21085 New Altair Community Member
edited May 2021 in Community Q&A
Tagged:

Answers

  • Adriano_Koga
    Adriano_Koga
    Altair Employee
    edited May 2021

    This question is out of topic. :)



    Anyway, in order to get the mesh connected, you need to have shared surfaces between your solid geometries.

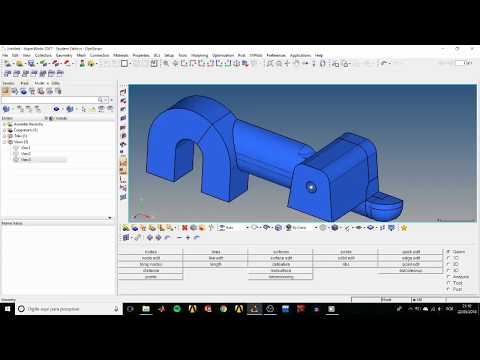

    This video shows these shared surfaces, and you will notice them in a different color. when you mesh both, as this surface is common to both geometries, your mesh will be connected.


    https://www.youtube.com/watch?v=l7WtSWjhDWA



    To solve this, you can combine your solid but keeping the interface:


    or in the old panels, use this Geom>>solid edit>>boolean
