Stiffness increase more than yield strength after optimization

Altair Forum User

Hello,

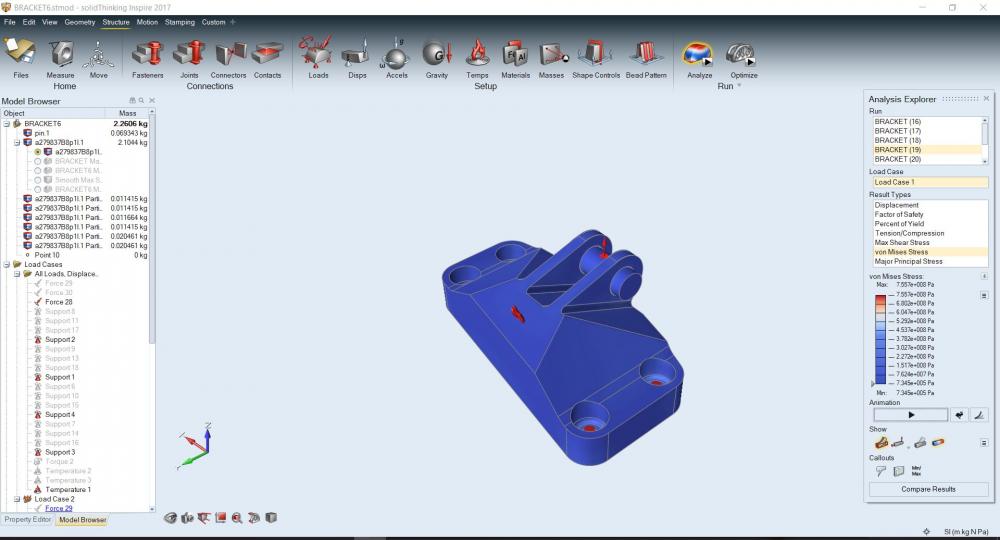

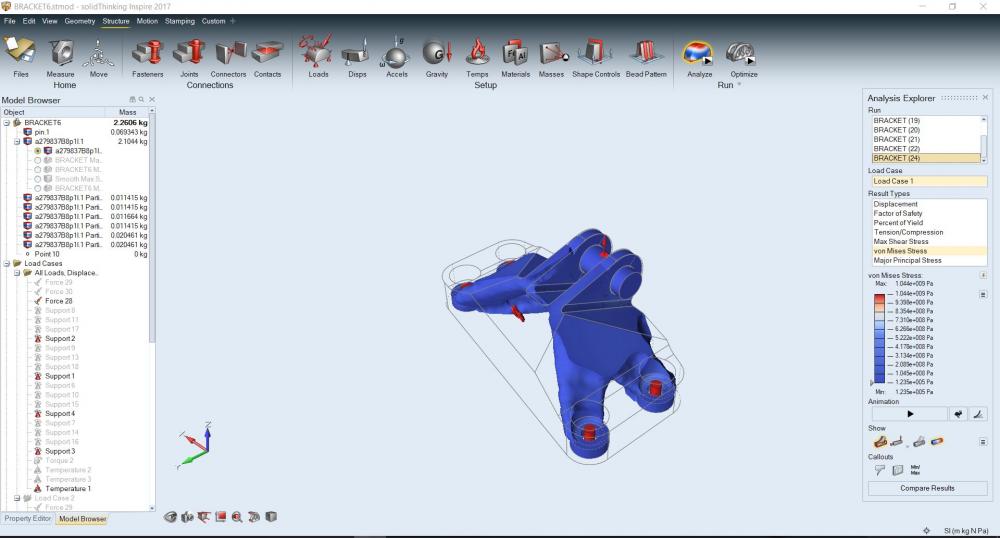

i have problem when optimization process done. i run analysis on the optimized design and the maximum von mises is more than yield strength. why it is possible to optimize in that shape if the von mises is more than yield strength of material?

<?xml version="1.0" encoding="UTF-8"?>

<?xml version="1.0" encoding="UTF-8"?>

Find more posts tagged with

English

Inspire

Accepted answers

All comments

Rahul Rajan_21763

What design constraints and objective you have in your model?You can use shape explorer slider to add more material and then again perform analysis for optimized shape.

Altair Forum User

The file in stmod. need help. why i cant get ideal design with ideal stiffness when optimization is done. any process or step that i missed??

Unable to find an attachment - read this blog

Altair Forum User

i want to minimize the mass at the same time need to maintain the stiffness

Rahul Rajan_21763

Thanks for sharing file.I will take a look and update you shortly.

Altair Forum User

thank you so much for the help.

Rahul Rajan_21763

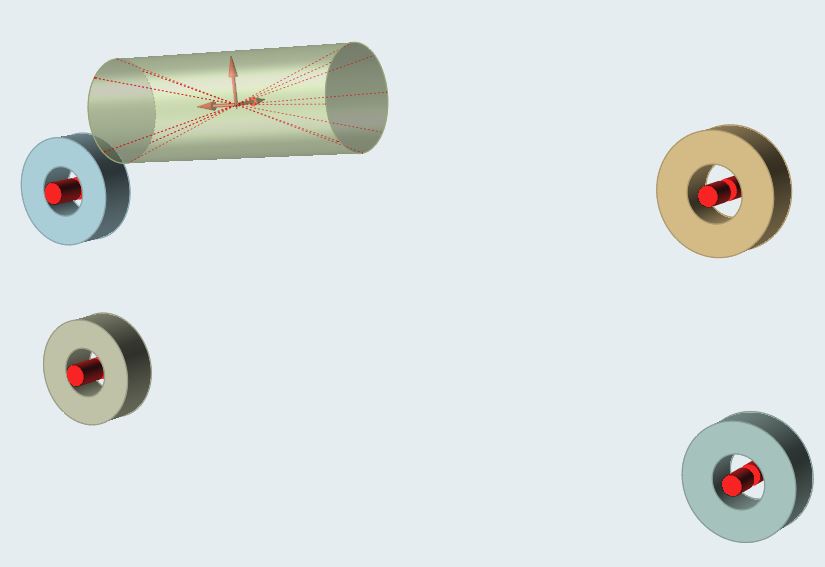

For now i would suggest you to work on modelling part.Please apply load on connector instead of applying load on pin surface.(After optimization 3 loadcase are getting deleted)

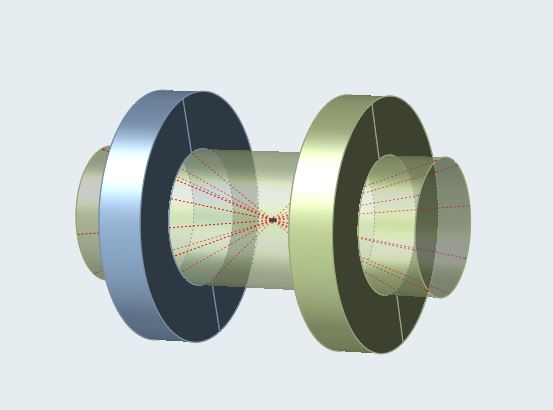

In partition 6 and 8 part you can have a though out cut.(Current model has very thin region after partition 6 & 8 part)

<?xml version="1.0" encoding="UTF-8"?>

<?xml version="1.0" encoding="UTF-8"?>

Altair Forum User

do you mean that i cannot use partition to separate the o ring shape ? instead of using partition, i need to used cut?

Altair Forum User

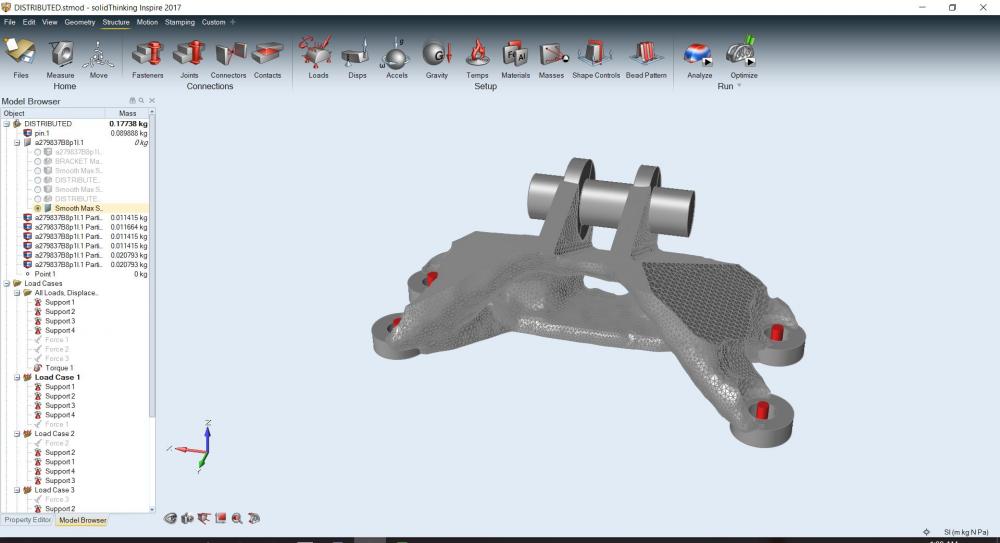

sorry, i have another question, why the mass of the part became 0 kg? i ran 20% volume and 30 %. when i want to ran 40 % the mass became zero. it is because of the partition??

<?xml version="1.0" encoding="UTF-8"?>

<?xml version="1.0" encoding="UTF-8"?>

Rahul Rajan_21763

If possible use latest patch of Solidthiking Inspire. Latest patch is Inspire 2017.3

Altair Forum User

okay thank you so much.

Altair Forum User

what is the different between bonded and contact? suppose bonded is something like bolt ?

Rahul Rajan_21763

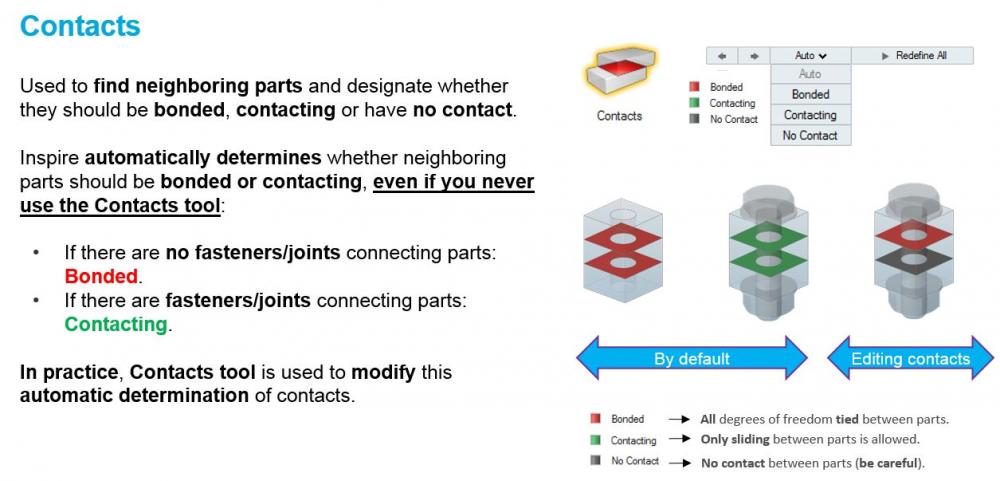

Please find attached screenshot for Inspire contacts.

<?xml version="1.0" encoding="UTF-8"?>

Altair Forum User

where i can find the explanation like this? is there any manual?

Rahul Rajan_21763

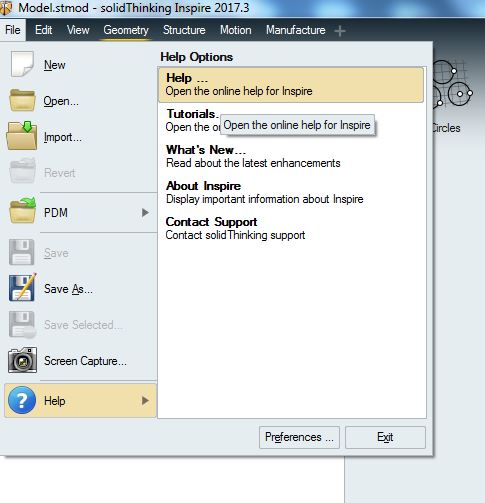

Please use Inspire help.Refer attached screenshot.

<?xml version="1.0" encoding="UTF-8"?>

Altair Forum User

i have change all the setting base on what you have suggested. however my optimized result still have the same value of von mises. the optimized design violate the yield strength of material. can you take a look.

Unable to find an attachment - read this blog

Sanjay Nainani_20973

Hello,

I tried and re run your optimization.

I can see that you have applied one load on Design Space. This is ok for Optimization.

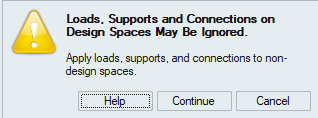

But when it comes to the analysis part after this some load cases may get ignored and this would affect the results.

I advice you to apply all loads on Non Design Spaces.


Thankyou

Altair Forum User

thank you mr sanjay. How about this? i apply all the loads on the non design space but still the same. i already separate between design and non design space. really need help.

Sanjay Nainani_20973

hello,

can you please upload the model in which you didn't apply loads on the Design Space.

thank you

Altair Forum User

can i have your email mr sanjay. because this is my final project thank you

Sanjay Nainani_20973

Please upload the file here.

Secure file dropbox https://ftam1.altair.com/dropbox/~0simQA

Thank you

Sanjay Nainani_20973

Hello,

Here are some suggestions which may help:

1. Please apply all the loads to Non Design spaces as then only you will get accurate results and it is better to not apply loads on the Design Spaces if you are running an optimization.

2. If there are too many constraints it may give results ignoring the Stress Constraints. So i suggest you to increase the Mass targets from 30% to a higher value so that Inspire can then take regard of the Stress Constraints.

3. Also try the option of giving a Total Mass target instead of '% of Total Design Space Volume' Constraint if the mass of the optimized part is critical to you.

Thankyou

Altair Forum User

thank you and i already sent the file.

Sanjay Nainani_20973

Hello,

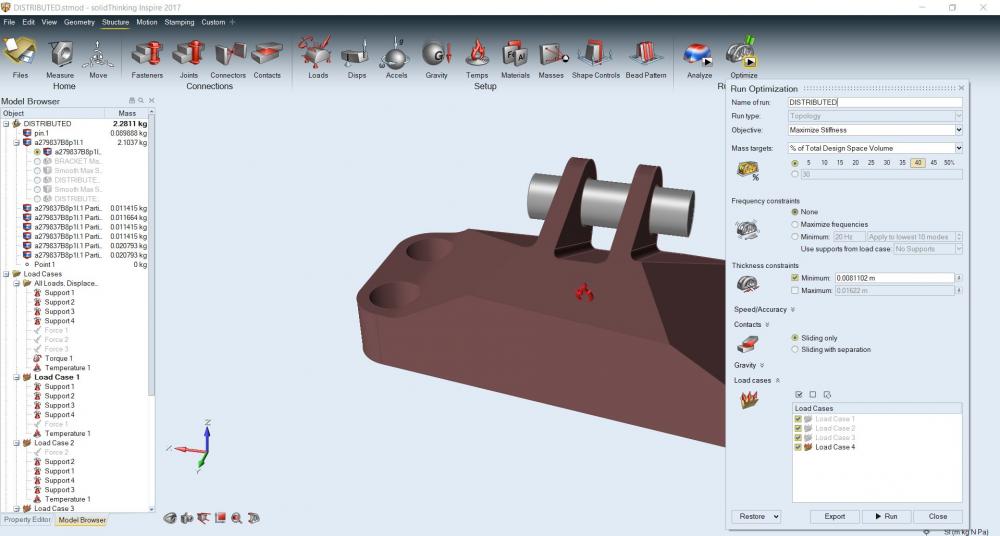

Please try with the following constraints:

Mass target: '% of Total Design Space' to 40%

Slider on the following setting


I ran with these settings and i am getting good results

Thankyou

Altair Forum User

let me try first.

Altair Forum User

hello mr sanjay, why when i animate, the right ring that suppose to hold the pin is dislocate?

Sanjay Nainani_20973

Hello,

Please check your scale factor for animation


Change it to 1


Thankyou

Altair Forum User

i change it to 2. but stillllllllll

Sanjay Nainani_20973

This is because you are scaling the results by a factor of 2. Please change it to 1

Thank you
