Hide Geometry points

Altair Forum User
Altair Forum User
Altair Employee
edited October 2020 in Community Q&A

Hey guys,



i have a simple question.

i would like to do a screenshot of a component without any geometry points.

how can i hide these points?

'Tool - mask points ' does not work

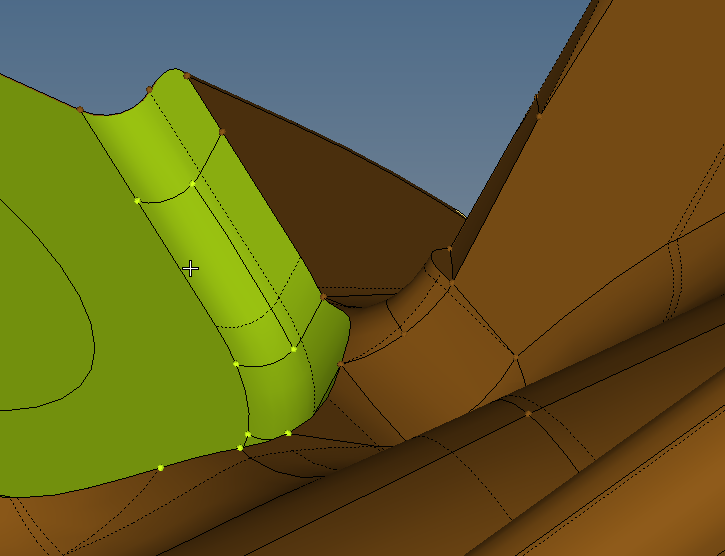

<?xml version="1.0" encoding="UTF-8"?>2018-02-26 12_58_31-180112_CH_UNIT_4560_Kontakte_komplett.hm_ - HyperMesh 2017 - Abaqus (Standard3D).png

Tagged:

Answers

  • Sanjay Nainani_20973
    Sanjay Nainani_20973 New Altair Community Member
    edited February 2018

    Hello,



    Can you please try and deactivate this option:<?xml version="1.0" encoding="UTF-8"?>image.thumb.png.70235ce10cc9a7fbe4503943573d2cc4.png



    If this does not work, i don't think there is any other way to hide the points as those are topological points.



    You can only delete them or suppress them (ignore during meshing)



    Thankyou

  • Altair Forum User
    Altair Forum User
    Altair Employee
    edited February 2018

    thanks, it works!
