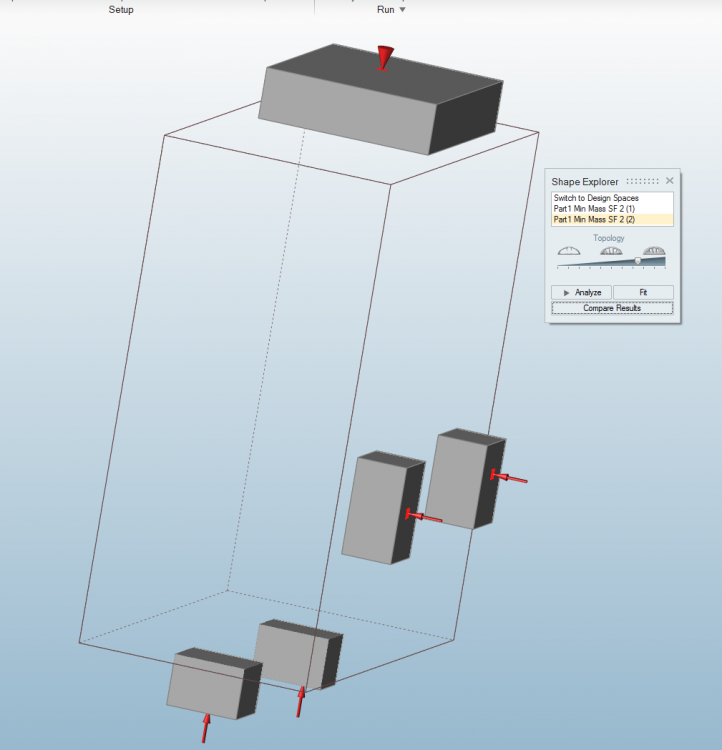

i can not optimized with min. Mass . Can tell my everyone where the Problem is?
<?xml version="1.0" encoding="UTF-8"?>
The design space (cuboid in the center) appears to be missing from the analysis, the loads and supports are not applied on a connected solid entity,
Hi Rahul,
thank you first for your feedback. i tried fix the Problem, but i cant found any Solution. Can you please check the file?
Regards
Unable to find an attachment - read this blog

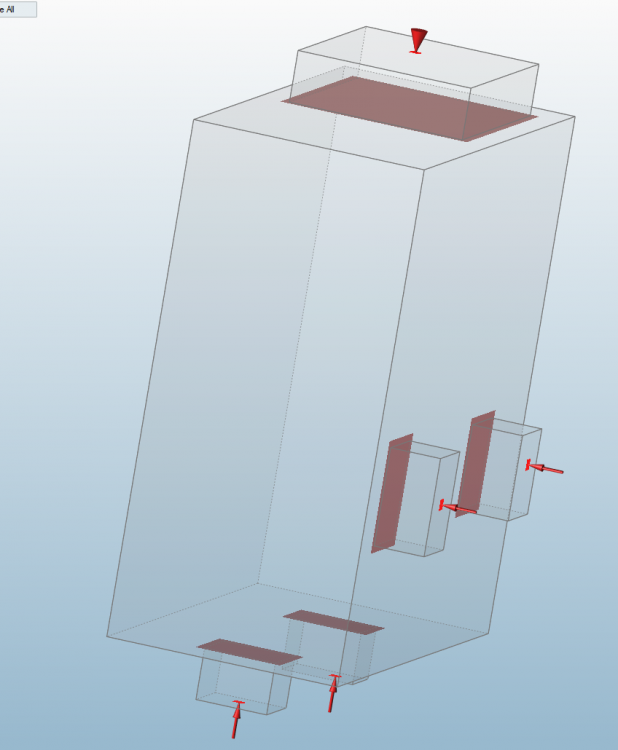

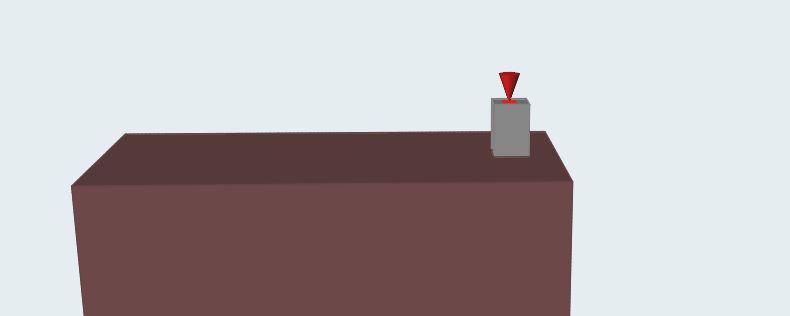

There is no non design space in your model, you need to apply the loads only on non design spaces as shown here
ii tried again with you tipp. But its not work.! Can you please check the file?

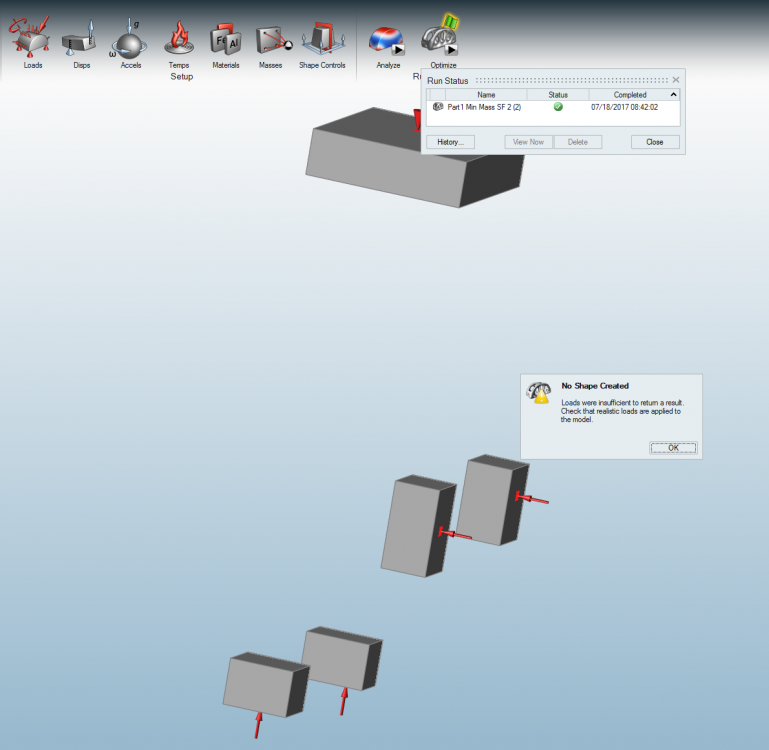

you need higher loads, a load on 150 N on a 150 kg steel block will not produce much effect...
