Mirror a polynurbs

Altair Forum User

Hi all,

I have a question: i created a polynurbs around an half bracket,  which was symmetric in respect to a vertical plane.

Now I should mirror this polynurbs (respect to the same plane) in order to create a complete object, but to me it seems not easy at all.

Can someone help me to understand how to do ?

Best,

Flaminia



Unable to find an attachment - read this blog

Mario_21478

Hello,

I can't detect the symmetry plane in your model for the polynurbs and for me it seems to be broken.

But in general try the following:

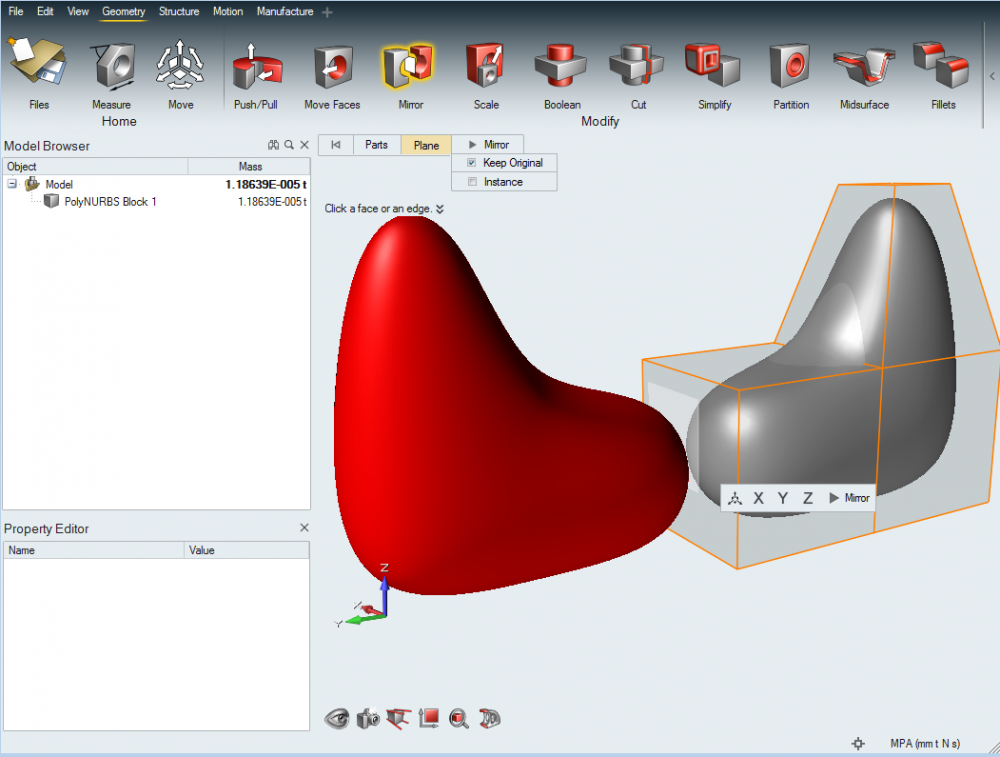

1: Mirror the polynurbs object with standard mirror tool

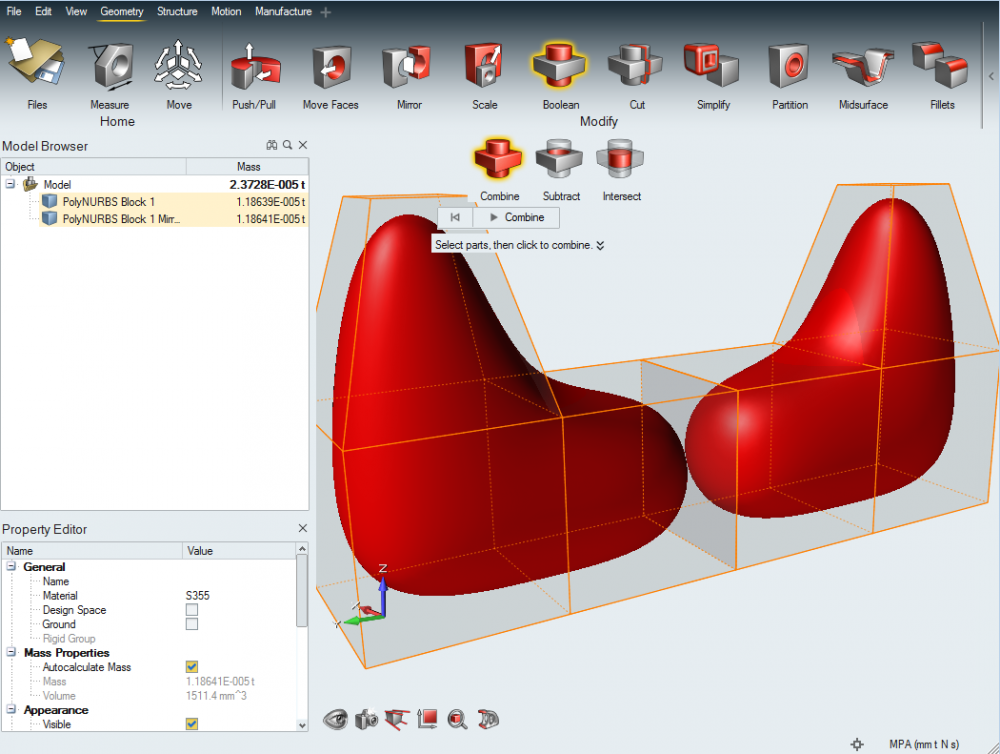

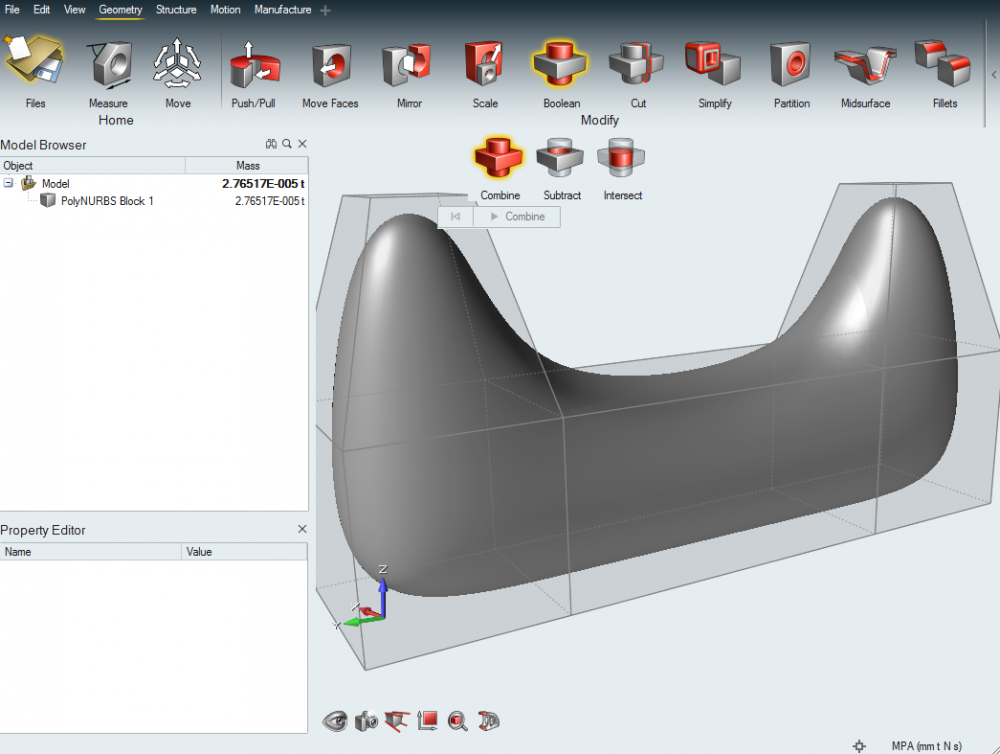

2: Combine both polynurbs objects with Boolean - Combine

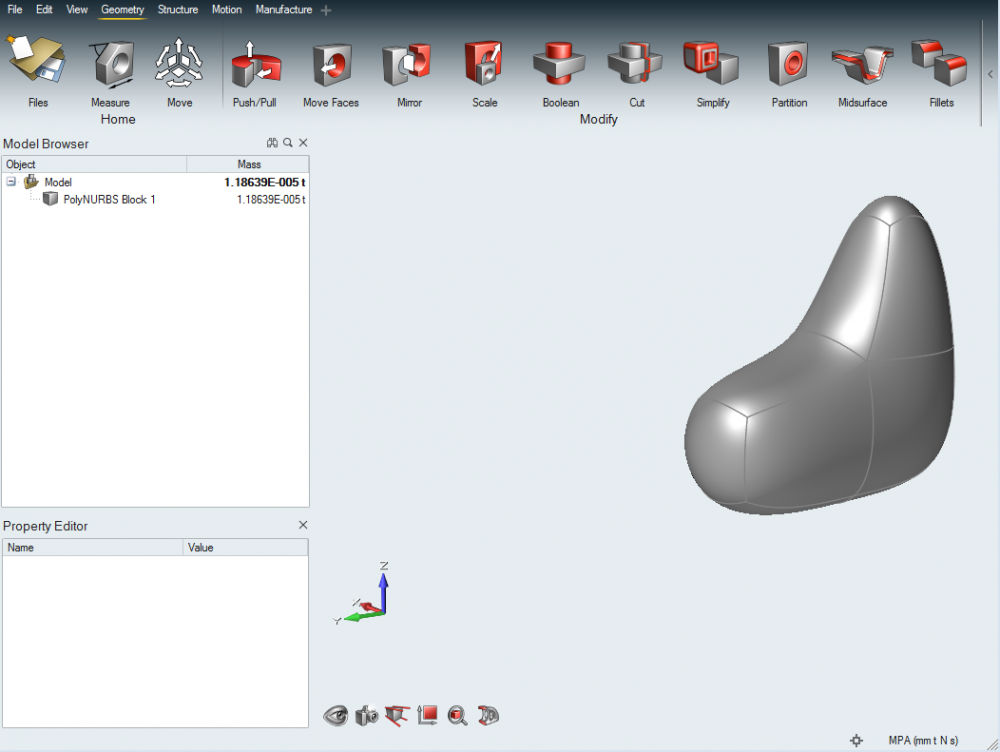

Take a look at the pictures. I hope that's what you meant.



Best Regards,

Mario
